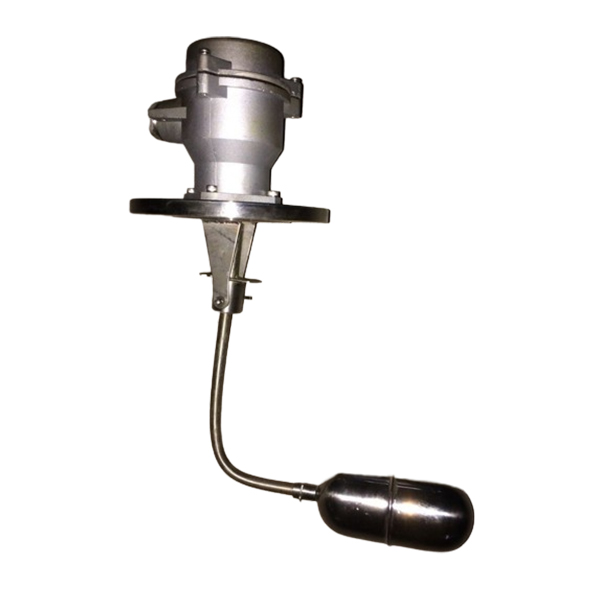

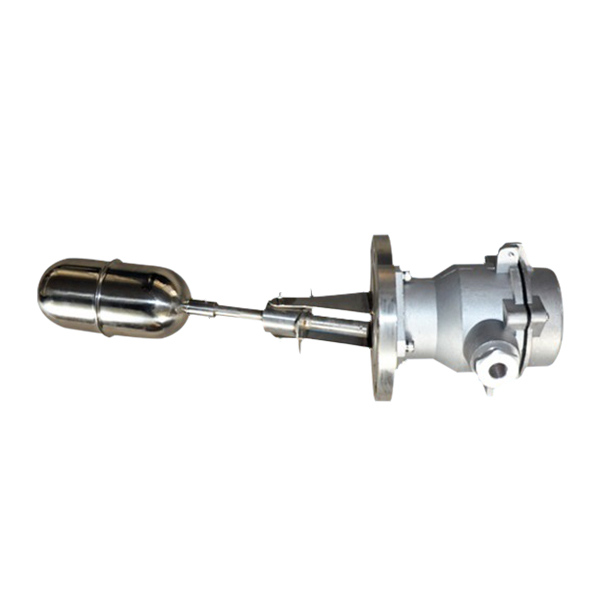

UQK-01／02／03型船用液位控制器適用于船艦、化工及其它工業(yè)設備中對艙柜內介質的液位進行兩位式控制和報警。防爆型開關還適用于ExdllCT3一T6防爆場合的液位控制。
UQK-0I／02／03The ftoat level controller is widely used in ship chemical industry and other industrial instrument to carry two place controlling and alarm to the level in liquid the site of explosion-proof class is ExdllCT3-T6.
主要技術參數 Main technical parameters
型號 Type | 公稱壓力 Nominal Pressure | 控制范圍 Control range(mm) | 整定方式 Regulate type | 安裝形式 Mounting type | 材料Matefial | 介質溫度 Medium Temperature | 觸點容量 Power supply | 防護等級 Proteaion | |
法蘭Flange | 浮球Float | ||||||||
UQK-01-C | ≤ 1.0Mpa | 10~30 | 定值不可調 Fixed value | 側裝、頂裝 Horizontal、Vertical | 1Cr18Ni9Ti | 1Cr18Ni9Ti | t≤150℃ | AC:220V 1.5A 110V 2.5A DC:240V 0.5A 24V.5A | lp65 |
UQK-01-CB | ≤ 4.0Mpa | 鑄青銅Bronze | |||||||
UQK-02-C | ≤ 1.0Mpa | 25~550 | 分級可調 Class and Adjustable | 側裝 Horizontal | 1Cr18Ni9Ti | ||||
UQK-02-CB | ≤ 4.0Mpa | 鑄青銅Bronze | |||||||
UQK-03-C | ≤ 1.0Mpa | 8~1000 | 無級可調 adjustable | 頂裝 Vertical | 1Cr18Ni9Ti | ||||
UQK-02-CB | ≤ 4.0Mpa | 鑄青銅Bronze | |||||||
